Psychedelic Voltage Processor - Eurorack

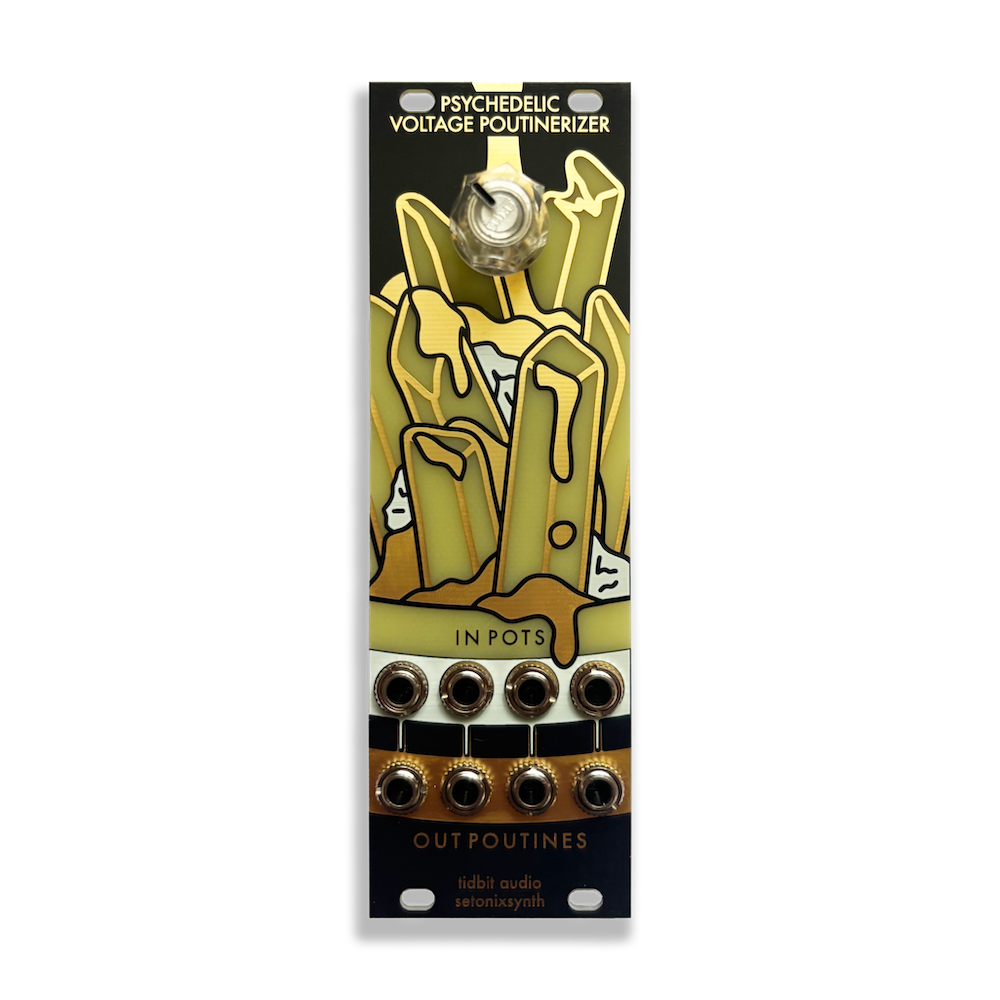

The Psychedelic Voltage Processor, or PVP, is a four-channel chaos module. It uses color-changing LEDs to produce fluctuating voltages in response to the Channel input, with each channel normalized in series to create increasingly chaotic “taps” that can be used one after another for different variations.
Any positive voltage input such as unipolar LFOs, envelopes, stepped voltages, or simply the onboard normalized voltage patched to a channel input is reproduced approximately on each channel output, with the PVP inducing unpredictable fluctuations due to the variable current consumed by an LED circuit with a mind of its own.
Technical Specifications (Eurorack standard)
Width: 8hp
Depth: 25mm
Peak Current Draw: 135mA @ +12V, 10mA @ -12V
Input Impedance (Channel 1): 150kΩ
Input Impedance (Channels 2-4): 100kΩ
Output Impedance (All Channels): 1kΩ, DC Coupled
The Psychedelic Voltage Processor, or PVP, is a four-channel chaos module. It uses color-changing LEDs to produce fluctuating voltages in response to the Channel input, with each channel normalized in series to create increasingly chaotic “taps” that can be used one after another for different variations.
Any positive voltage input such as unipolar LFOs, envelopes, stepped voltages, or simply the onboard normalized voltage patched to a channel input is reproduced approximately on each channel output, with the PVP inducing unpredictable fluctuations due to the variable current consumed by an LED circuit with a mind of its own.
Technical Specifications (Eurorack standard)
Width: 8hp
Depth: 25mm
Peak Current Draw: 135mA @ +12V, 10mA @ -12V
Input Impedance (Channel 1): 150kΩ
Input Impedance (Channels 2-4): 100kΩ
Output Impedance (All Channels): 1kΩ, DC Coupled
The Psychedelic Voltage Processor, or PVP, is a four-channel chaos module. It uses color-changing LEDs to produce fluctuating voltages in response to the Channel input, with each channel normalized in series to create increasingly chaotic “taps” that can be used one after another for different variations.
Any positive voltage input such as unipolar LFOs, envelopes, stepped voltages, or simply the onboard normalized voltage patched to a channel input is reproduced approximately on each channel output, with the PVP inducing unpredictable fluctuations due to the variable current consumed by an LED circuit with a mind of its own.
Technical Specifications (Eurorack standard)
Width: 8hp
Depth: 25mm
Peak Current Draw: 135mA @ +12V, 10mA @ -12V
Input Impedance (Channel 1): 150kΩ
Input Impedance (Channels 2-4): 100kΩ
Output Impedance (All Channels): 1kΩ, DC Coupled
Demo of the Psychedelic Voltage Processor by Nick from Tidbit Audio, demonstrating it with LFOs, self patching, and more.
